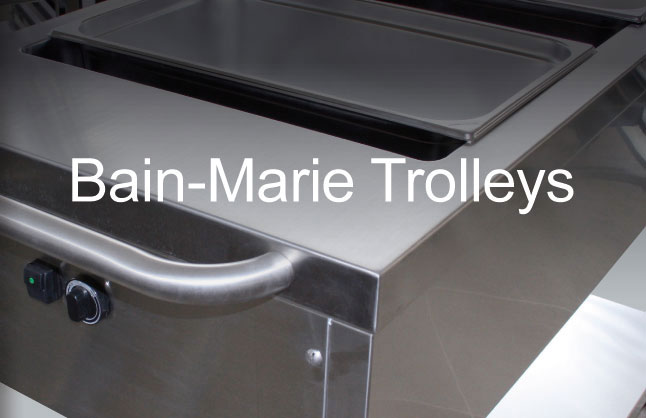

Bain-marie trolley open type

With common heated water basin

With 2-3-4 indipendent basins

For containers GN 1/1

All bain-marie trolleys are entirely made in AISI 304 Stainless Steel with the intention of assure the maximum hygiene and they are projected to guarantee the respect of the perfect food conditions during the phases of transport and distribution in terms of temperature and safety.

QUALITY
Both the electric part that the hydraulic one are realized using components of high quality and are certified according to the European Standards CE.

Technical Characteristics

• Ergonomic push-handle on the shorter side or on the longer side of the top of the trolley
• Adjustable thermostatic control from +30°C a +90°C
• Non-marking pivoting wheels made of synthetic rubber with chromed support, Ø 125x30, two with brake, for temperature from -20°C to +80°C (optional with inox support)
• Corner rubber bumpers

Models bain-marie trolley open type:

With 1 Bowl handle on shorter side Model BM1V11 Code 812040 kW 1 X GN 1/1 - kW 0,7 L mm 670 P mm 640 H mm 900

With 1 Bowl handle on longer side Model BMF1V211 Code 812060 kW 2 X GN 1/1 - kW 1,4 L mm 900 P mm 670 H mm 950

With 1 Bowl handle on shorter side Model BM1V211 Code 812005 kW 2 X GN 1/1 - kW 1,4 L mm 670 P mm 950 H mm 900

With 1 Bowl handle on longer side Model BMF1V311 Code 812065 kW 3 X GN 1/1 - kW 2,1 L mm 900 P mm 670 H mm 1350

With 1 Bowl handle on shorter side Model BM1V311 Code 812010 kW 3 X GN 1/1 - kW 2,1 L mm 670 P mm 1350 H mm 900

---

With 2 Bowls handle on shorter side Model BM2V11 Code 812045 kW 2 X GN 1/1 - kW 1,4 L mm 670 P mm 950 H mm 900

With 2 Bowls handle on longer side Model BMF2V11 Code 812015 kW 2 X GN 1/1 - Kw 1,4 L mm 900 P mm 670 H mm 950

---

With 3 Bowls handle on shorter side Model BM3V11 Code 812050 kW 3 X GN 1/1 - kW 2,1 L mm 670 P mm 1350 H mm 900

With 3 Bowls handle on longer side Model BMF3V11 Code 812020 kW 3 X GN 1/1 - Kw 2,1 L mm 900 P mm 670 H mm 1350

---

With 4 Bowls handle on shorter side Model BM4V11 Code 812055 kW 4 X GN 1/1 - kW 2,8 L mm 670 P mm 1705 H mm 900
