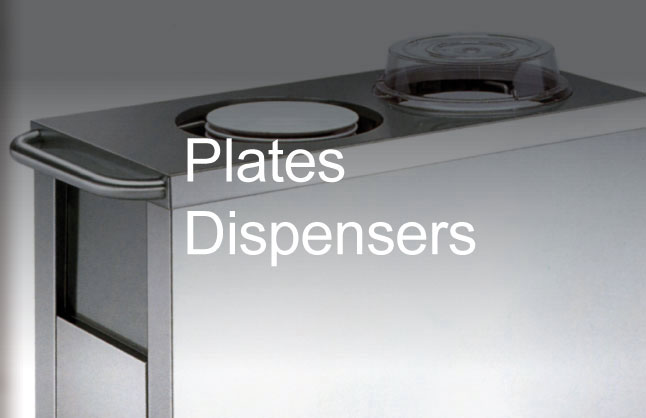

Plate dispenser trolleys

neutral - static heating - ventilation heating

With 1 or 2 cylinders for round plate D. 210/260

Technical Characteristics

• Completely made in stainless steel AISI 304 Ni/Cr 18/10 grade
• Automatic lift mechanism uses anti-jammed springs which are projected to adjust the level of platform to help the customers
• 4 pivoting wheels D. 125X30, two with brake
• 4 corner rubber bumpers
• Heated units thermostatically controlled from + 30°C to + 90°C (for models static heating and ventilation)

Models plate dispenser trolleys:

NEUTRAL 1 cylinder 2 cylinderS for plates round D. 210/260 60 PLATES 120 PLATES Model CPDN1F CPDN2F Code 812105 812110 Power kW - - Length mm 600 490 Depth mm 650 965 Height mm 1050 900

STATIC HEATING 1 cylinder 2 cylinderS for plates round D. 210/260 60 PLATES 120 PLATES Model CDPRS1F CDPRS2F Code 812115 812120 Power kW kW 0,5 kW 0,9 Length mm 490 490 Depth mm 650 965 Height mm 900 900

VENTILATION HEATING 1 cylinder 2 cylinderS for plates round D. 210/260 60 PLATES 120 PLATES Model CDPRV1F CDPRV2F Code 812125 812130 Power kW kW 0,5 kW 0,9 Length mm 490 490 Depth mm 650 965 Height mm 900 900
